| Place of Origin | Japan/ China |
| Brand Name | Omron |
| Model Number | R88M-1M10030T-S2 |

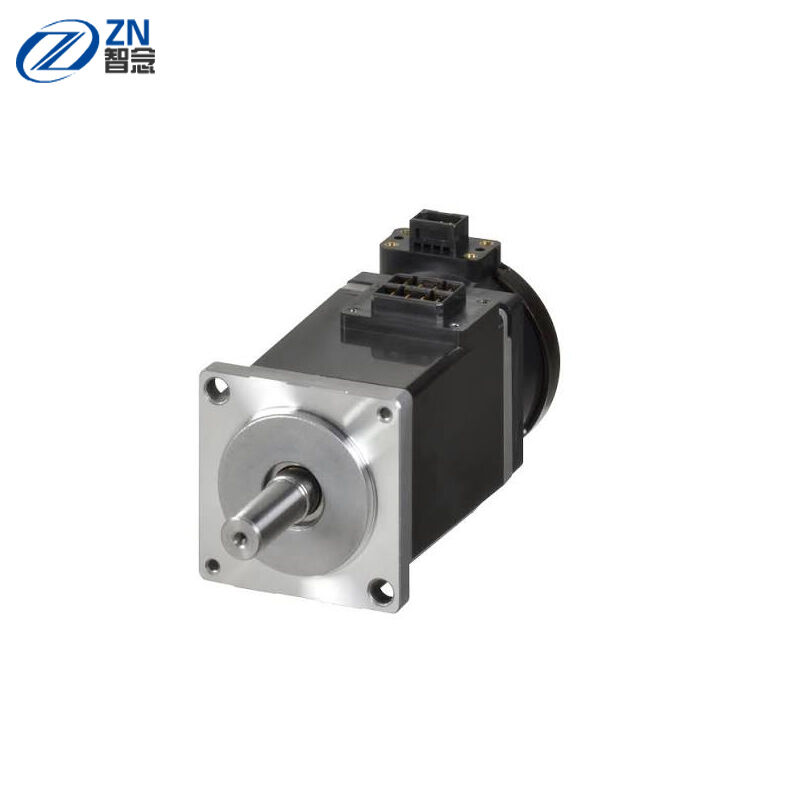

R88M-1M10030T-S2 AC Servo Motor 100W 230VAC Fast Delivery
1S AC servo motor, 100 W, 230 VAC, 3000 rpm, 0.318 Nm, absolute encoder
| Servo control method | EtherCAT |
| Drive supply voltage | 230 V single phase |
| Rated output | 0.1 kW |
| Rated speed | 3000 r/min |
| Rated torque | 0.318 Nm |
| Peak torque | 1.11 Nm |
| Encoder type | Absolute without battery |
| Encoder resolution | 23 Bit |
| Motor with brake | no |
| Motor with oil seal | no |
| Flange size square (LC) | 40 mm |
| Shaft diameter | 8 mm |
| Shaft with key | yes |
| Shaft with tap | yes |
| Product Weight (unpacked) | 520 g |
