| Place of Origin | Japan/ China |
| Brand Name | Omron |
| Model Number | H5CC-AD |

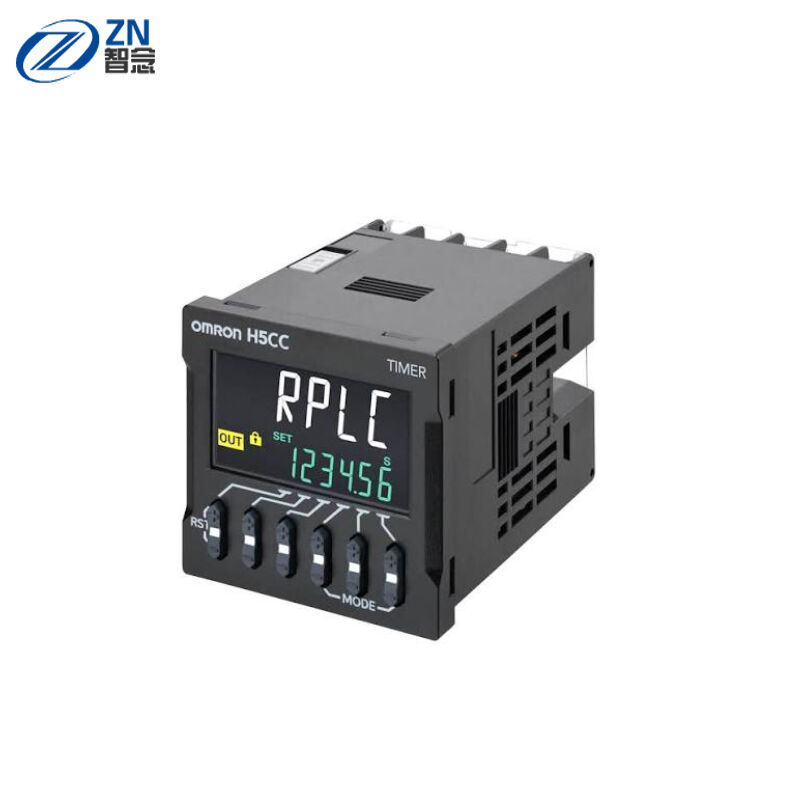

H5CC-AD H5CC Timer Control Components
Timer, DIN 48x48 mm, standard type, screw terminals, No-voltage (NPN) input/voltage (PNP) input (switchable), Contact output (time-limit SPDT), 12 to 48 VDC/24 VAC supply
| Type | Digital |
| Installation type | DIN rail, On-panel, Socket |
| Functions | Multi-functional |
| Size | 1/16 DIN (48 x 48 mm) |
| Terminal type | Screw |
| Operating mode | Flicker OFF Start (Signal Start), Flicker ON Start (Signal Start), Interval (Signal Start), OFF Delay (Signal), ON Delay (Power ON Start), ON Delay (Signal Start), Signal ON/OFF Delay |
| Output type | Relay |
| Contact description | SPDT |
| Supply voltage AC | 24-24 V |
| Supply voltage DC | 12-48 V |
| Inputs | Gate (NPN/PNP), Reset (NPN/PNP), Signal (NPN/PNP) |
| Features | LED |
