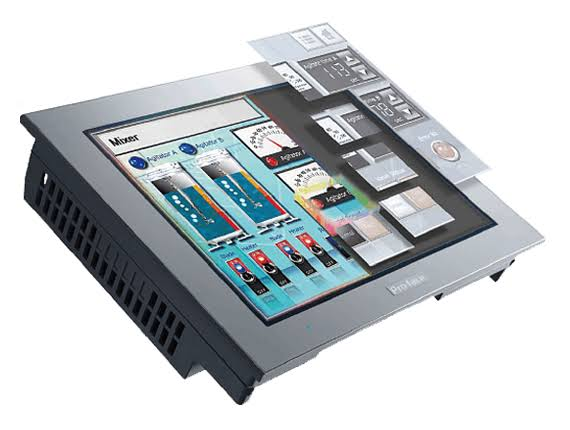

PFXGP4501TADW 10.4-inch TFT color LCD operator interface from the Pro-face GP4000 Series
  • PFXGP4501TADW 10.4-inch TFT color LCD operator interface from the Pro-face GP4000 Series
  • PFXGP4501TADW 10.4-inch TFT color LCD operator interface from the Pro-face GP4000 Series
  • PFXGP4501TADW 10.4-inch TFT color LCD operator interface from the Pro-face GP4000 Series
  • PFXGP4501TADW 10.4-inch TFT color LCD operator interface from the Pro-face GP4000 Series
  • PFXGP4501TADW 10.4-inch TFT color LCD operator interface from the Pro-face GP4000 Series
PFXGP4501TADW 10.4-inch TFT color LCD operator interface from the Pro-face GP4000 Series

PFXGP4501TADW 10.4-inch TFT color LCD operator interface from the Pro-face GP4000 Series

Place of Origin Japan
Brand Name Pro-face
Model Number PFXGP4501TADW
Product Details
Part Number::
PFXGP4501TADW
Manufacturer::
Pro-face
Shipping Weight:
4 KG
Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$833/pc ~$1059 /pc
Packaging Details
Carton packaging
Delivery Time
3-5 working days
Payment Terms
T/T, western union
Supply Ability
200pc/per week
Product Description

PFXGP4501TADW  | Human Machine Interface (HMI)



​PFXGP4501TADW 10.4-inch TFT color LCD operator interface from the Pro-face GP4000 SeriesPFXGP4501TADW 10.4-inch TFT color LCD operator interface from the Pro-face GP4000 SeriesPFXGP4501TADW 10.4-inch TFT color LCD operator interface from the Pro-face GP4000 SeriesPFXGP4501TADW 10.4-inch TFT color LCD operator interface from the Pro-face GP4000 Series

  • Screen Size & Type: 10.4-inch TFT Color LCD with 65,536 colors and an LED backlight rated for 50,000 hours of life.
  • Resolution: 640 x 480 pixels (VGA) with an effective display area of 211.2 x 158.4 mm.
  • Touch Panel: Analog resistive film type with 1,024 x 1,024 resolution and a service life of 1,000,000 operations or more.
  • Onboard Memory: 16 MB FLASH EPROM application memory, 8 MB user font area, and 128 KB SRAM backup memory backed by a replaceable lithium battery
  • Serial Ports: COM1 (RS-232C) and COM2 (RS-422/485) via D-Sub 9-pin plugs.
  • Ethernet: IEEE802.3i/IEEE802.3u (10BASE-T/100BASE-TX) via an RJ-45 port.
  • USB: USB 2.0 Type-A x 1 and USB 2.0 Mini-B x 1.
  • Storage: SD Card slot supporting up to a 32 GB SD/SDHC card
  • Rated Voltage: 24 V DC (allowable range 19.2 to 28.8 V DC) with power consumption under 17 W.
  • Dimensions: External dimensions of W315 x H241 x D56 mm with a panel cut-out of 301.5 x 227.5 mm.
  • Protection Level: Front panel conforms to IP65f, NEMA 4X, and NEMA 13 ratings.
  • Temperature Range: Operating temperature from 0°C to 50°C and storage temperature from -20°C to 60°C
​
