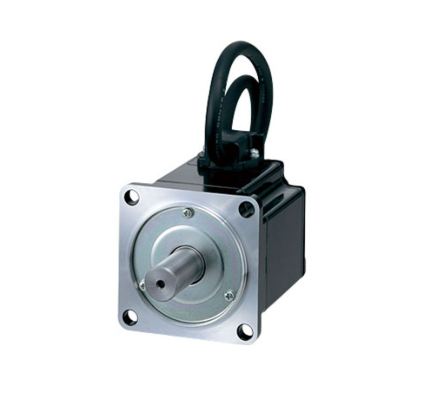

GYB751D5-RG2

• GYB: Motor series code representing the Medium Inertia Type.
• 751: Rated output power (75 × 10¹ = 750W).
• D: Rated speed series (3000 r/min).
• 5: Development order / design revision code.
• R: Encoder specification (20-bit incremental encoder).
• G: Shaft end and oil seal specifications (with oil seal, straight shaft, with keyway, and tapped).
• 2: Input voltage rating (3-phase 200V).
• No suffix: The absence of a "-B" at the end confirms this model is without an electromagnetic brake (no brake).

• Rated Torque: 2.39 N·m
• Rated Current: 5.2 A
• Rated Frequency: 150 Hz
• Total Weight: Approximately 3.0 kg (Shipping weight approx. 4.5 kg)
• Matching Servo Amplifier: Typically paired with Fuji ALPHA5 Smart series drives (such as model RYH751F5-VV2).
