| Place of Origin | China |
| Model Number | CS1W-CIF31 |

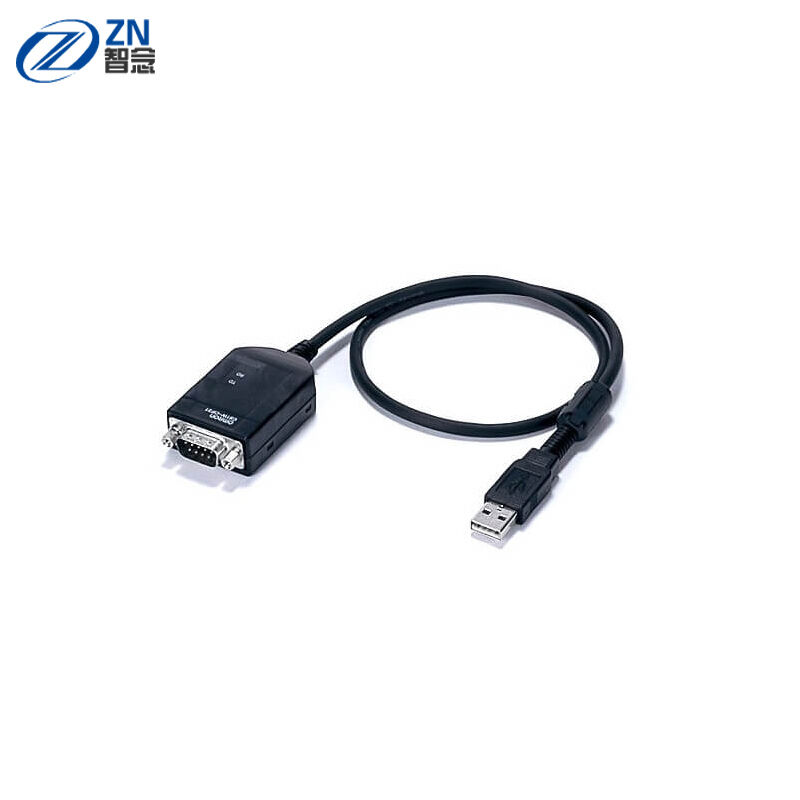

CS1W-CIF31 USB-Serial Conversion Cable
The CS1W-CIF31 USB-Serial Conversion Cable connects CS/CJ/CP Series, C Series, CVM1/CV Series of OMRON PLC (Programmable Controller) or PT (Programmable Terminal) to a personal computer's USB port.
Specification
| USB interface rating | Conforms to USB Specification 2.0 | |
| DTE speed | 115.2 kbps | |
| Connector specifications | Computer end | USB (type A plug, male) |
| PLC end or PT end | RS-232C (D-sub 9-pin, male) | |
| Power supply | Bus power (5 VDC power from upstream) | |
| Current consumption | 35 mA | |
| Operating environment | Ambient temperature | 0 to 55 ºC |
| Ambient humidity | 10% to 90% humidity (with no condensation) | |
| Atmosphere | No corrosive gases | |
| Weight | 50 g | |
Packing and Delivery
1. Q: Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.
2. Q: Could Zhinian provide technology support?
A: We're in this field more than 12 years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.
3. Q:Does Zhinian keeps goods in stock or only trading?
A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
CONTACT US AT ANY TIME
