Fuji Electric HMI
>
|
| Place of Origin | China/Japan |
| Brand Name | FUJI |
| Model Number | V9100IC |

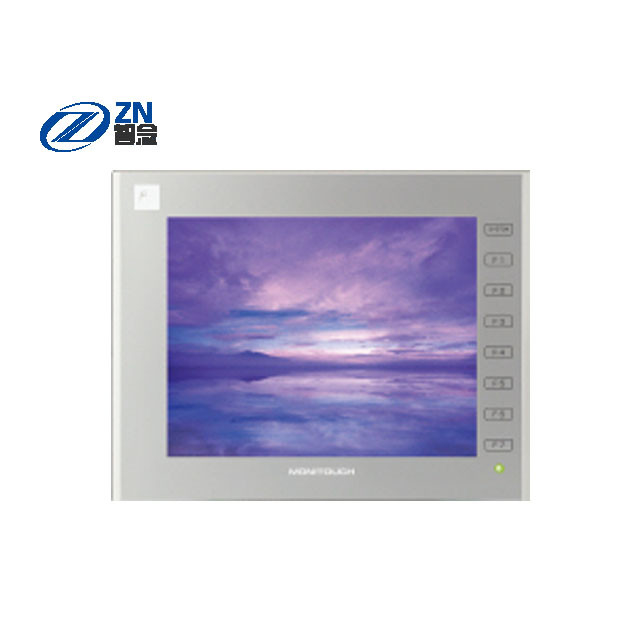

Monitouch V9 Series Information
The MONITOUCH V9 Series includes three line‑ups with the V9 Lite, V9 Standard, and the V9 Advanced, designed to replace the V8 Series while also offering step‑up features to satisfy the requirements of more advanced applications. Fuji Electric’s MONITOUCH Human Machine Interface (HMI) V9 series range in size from 5.7” to 15". All models in the V9 Series are UL Certified, and come standard with on‑board Ethernet ports and SD card slots, allowing for better connectivity to peripheral devices.
Item Number:
V9100IC
Brand:
Fuji
Item Category:
Human Machine Interface
Series:
Monitouch V9
Display Size:
10.4 Inches
Display Type:
Color TFT
Touch Screen:
Yes
Outdoor Viewable:
No
Screen Resolution:
640x480
Touch Region Resolution:
Analog
Communications:
USB;Serial;Ethernet
USB Ports:
(1) USB 2.0
Ethernet Ports:
(1) 10/100 Base T
Serial Ports:
(2) RS-232/RS-422/RS-485
PCMCIA:
No
Tactile Pushbuttons:
Yes
Video Output Port:
No
Mounting:
Panel
Bezel:
Silver Plastic
Form Factor:
Standard
Volts AC:
120;240
Operating System:
Dedicated OS
User Memory:
64 MB
Expandable Memory Option:
SD Card;USB Disk
Drivers:
Serial RS-232/RS-422/RS-485;Ethernet
IP Rating:
IP66;IP20
Operating Temperature:
32 to 122 Degrees F
Approvals:
UL;cUL;CE
H x W x D:
11.95 in x 9.05 in x 2.15 in
Net Weight:
4 lb 1 oz
Gross Weight:
5 lb 7 oz
