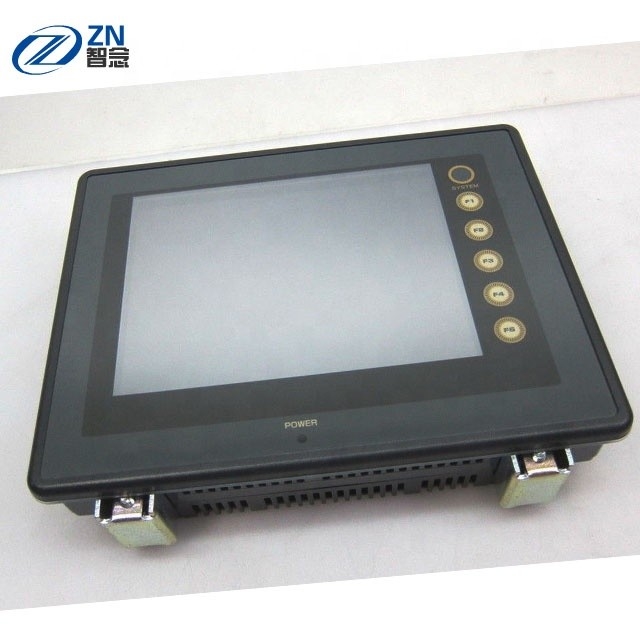

TS1100 HMI FUJI Touch Panel Display 10.2 Inch Level 2 LED Backlight
  • TS1100 HMI FUJI Touch Panel Display 10.2 Inch Level 2 LED Backlight
  • TS1100 HMI FUJI Touch Panel Display 10.2 Inch Level 2 LED Backlight
  • TS1100 HMI FUJI Touch Panel Display 10.2 Inch Level 2 LED Backlight

TS1100 HMI FUJI Touch Panel Display 10.2 Inch Level 2 LED Backlight

Place of Origin China/Japan
Brand Name FUJI
Model Number TS1100
Product Details
Condition:
100% Original And New
Warranty:
1YEAR
Package:
Original Packing
Shipping Ways:
DHL,FedEx,EMS
MOQ:
1 Piece
Model Number:
TS1100
Brand:
FUJI
Product Name:
HMI
Delivery Time:
1-2days
Port:
Selectable
High Light:

TS1100 FUJI Touch Panel

,

10.2 Inch FUJI Touch Panel

,

Level 2 HMI Display Panel

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$150-$2000
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

Original and New Fuji TS1100 HMI Touch Screen In Box With One Year Warranty

Specifications



Model

TS1100i

TS1100

TS1101i

Display

Display size

10.2” Wide

Resolution

800 × 480 dots

Display device

TFT color LCD

Colors

65,536 colors

Backlight

LED

Luminance

350 cd/m²

Touch switch



Analog resistance film

Memory

FROM

10.5 MB

SRAM

128 KB

External interface

Serial

COM1

RS-422/485, Asynchronous, Data length: 7,8 bits,
Parity: even/odd/none, Stop bit: 1,2 bits
Baud rate: 4800/9600/19200/38400/57600/76800/115200/187500 * 1bps

COM2 & COM3

RS-232C, Asynchronous, Data length: 7,8 bits,
Parity: even/odd/none, Stop bit: 1,2 bits
Baud rate: 4800/9600/19200/38400/57600/76800/115200 bps

RS-422/485(two-wire system), Asynchronous, Data length: 7,8 bits,
Parity: even/odd/none, Stop bit: 1,2 bits
Baud rate: 4800/9600/19200/38400/57600/76800/115200 bps

Ethernet

100BASE-TX/10BASE-T

-

100BASE-TX/10BASE-T

USB (Type A)

1 port (Ver. 2.0,Ver.1.1)

USB (Type mini B)

1 port (Ver. 2.0,Ver.1.1)

Clock

Battery

Coin-type lithium primary battery

Calendar accuracy

Gap±5 sec. per month (Ambient temperature 25 °C)

Power supply

Permissible range of voltage

DC 24 V ± 10 %

Demand
(maximum rating)

16 W or less

Physical environment

Ambient operating temperature

0~50 °C * 2

Ambient storage temperature

-10~60 °C * 2

Relative humidity

85 % RH or less(without dew condensation, Max. wet bulb temperature:39 °C or less)

Operation altitude

2,000 meters or less

Operation atmosphere

Not exposed to corrosive gas or excessive dust (free of conductive dust)

Contamination level

Level 2

Installation conditions

Dimensions
W × H × D

283.0 × 220.0 × 42.0 mm

Panel cutout
W × H

257.0 × 199.0 mm (+0.5/-0)

Protect structure

Front panel: Compatible with IP65 (when waterproof gasket * 3is used.), Rear cabinet: Compatible with IP20
Form: Single unit, Installation method: Panel mounting

Case color



Black

Compatibility



CE, KC

CE, KC, UL, cUL





Features:

  • Fast heating and rapid thermal recovery.

  • Metal structure heating element, strong and durable.

  • Long lifetime heater.

  • Easy tip replacement.

  • Station parameters interlock by means of PIN code.

  • Compatible with various types of soldering iron tips.

  • With temperature alarm function, Fahrenheit and Celsius temperature switchable.

  • High quality, digital LCD display.

  • Intelligent sleep function, capacitor sensing handle wake-up.

  • Three working modes.

  • Auto shutdown function available.

  • New design, improved operating.
