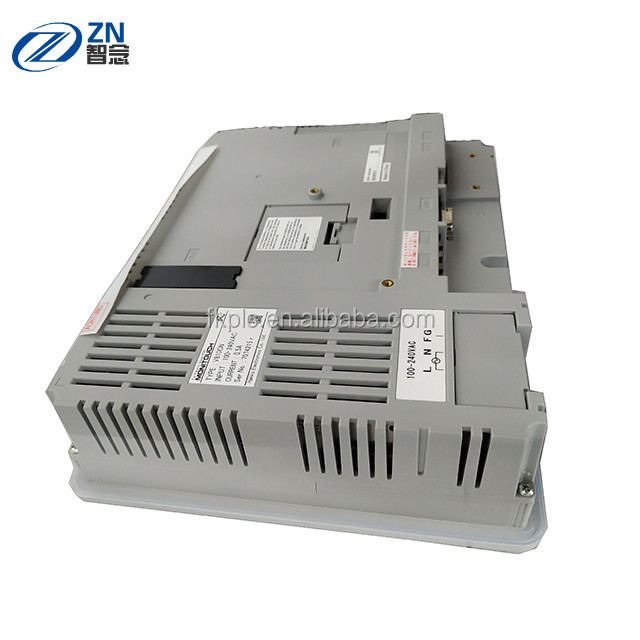

500V DC Fuji Electric HMI V810iSN/V810SN V810iTN/V810TN V810iCN/V810CN

Place of Origin China/Japan
Brand Name FUJI
Model Number V810iSN
Product Details
Service:
One-stop Service
Package:
Original Package
Quality:
New And Original
Lead Time:
In Stock
Warrenty:
1 Year
Delivery Detail:
3-5 Working Days After Payment
Insulation Resistance:
500V DC, 10MΩ Or More
Display Device:
TFT Color LCD
Backlight:
LED
Backlight Auto OFF:
Lit In Normal (Set By The User)
Port:
Guangdong Shenzhen Dongguan
High Light:

500V Fuji Electric HMI

,

V810SN Fuji Electric HMI

,

V810iSN

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$150-$2000
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

V810iSN/V810SN V810iTN/V810TN V810iCN/V810CN FUJI HMI

Service One-stop Service
Quality New And Original
Warrenty 1 Year
Insulation Resistance 500V DC,10MΩ or more
Backlight LED
Package Original Package
Lead Time In Stock
Delivery Detail 3-5 Working Days After Payment
Display Device TFT Color LCD
Backlight Auto OFF Lit In Normal (Set By The User)



Genneral Specifications

  V810xSN/
V810xTN
V810xCN V810xSDN/
V810xTDN
V810xCDN
Power supply Rated voltage 100~240V AC 24V DC
Permissible range of voltage 100~240V AC±10% 24V DC±10%
Permissible momentary power failure Within 20ms Within 1ms
Demand (maximum rating) 70VA or less 60VA or less 25W or less 20W or less
Inrush current 20A, 10ms
(100V AC)
40A, 6ms
(200V AC)
16A, 6ms
(100V AC)
32A, 7ms
(200V AC)
20A, 2ms 20A, 2ms
Insulation resistance   500V DC, 10MΩ or more
Physical environment Operation ambient temperature 0°C ~ +50°C
Storage ambient temperature -10°C ~ +60°C
Operation ambient humidity 85%RH or less (without dew condensation, Max. wet bulb temperature: 39°C or lower) *1
Resistance to solvent No attachment of cutting oil or organic solvent
Atmosphere Not exposed to corrosive gas or conductive dust
Operation altitude 2,000 meter or lower
Contamination level *2 Level 2
Mechanical Resistance to oscillation Vibration frequency: 10~150Hz, acceleration: 9.8m/s 2(1.0G) pulsating width: 0.075mm, X,Y,Z: 3 directions 1 hour each way
Resistance to shock Pulse shape: half-sine, peak acceleration: 147m/s 2(15G), X,Y,Z: 3 directions, six times each way
Electric Noise proof 1500Vp-p (pulse width 1 s, pulse rise time : 1ns)
Static discharge Complies with IEC61000-4-2, contact: 6kV, air: 8kV
Installation conditions Grounding Grounding resistance : Less than 100 Ω, FG/SG separation
Structure Protect structure: Front panel: Compatible with IP65 (when water-proof gasket is used.)
Rear cover: Compatible with IP20
Form: Single unit
Installation method: Panel mounting
Cooling system Natural air cooling
Weight Approx.2.5kg
Dimensions W×H×D(mm) 303.8×231.0×69.0
Panel cutout (mm) 289.0×216.2 (+0.5/-0)
Case color   Gray
Material   PC/ABS
  • *1 Keep wet bulb temperature under 39 to avoid an accident.
  • *2 Contamination level is an index that shows the incidence rate of conductive substance. At Level 2, only nonconductive substance is produced, but a temporary conductive state may occur due to dew concentration.

Performance Specifications

  V810xSN V810xTN V810iCN V810CN
Display specifications Screen memory 12.5MB 4.5MB
Display device TFT color LCD
Resolution W:H(dots) 800×600 640×480
Display size 10.4 inches
Colors 65,536 colors (without blinks)/ 32,768 colors (with blinks)
Backlight LED
Backlight Auto OFF Lit in normal (Set by the user)
Power lamp Lit in normal condition, blinks in alarm condition such as blowout of backlight bulbs
Contrast adjustment Fixed
Brilliance control 3 levels (Adjusted to 128 steps by macro command)
Number of characters 1/4 size 100 columns × 75 lines 80 columns × 60 lines
1-byte 100 columns × 37 lines 80 columns × 30 lines
2-byte 50 columns × 37 lines 40 columns × 30 lines
Enlargement of characters   X: 1–8 times Y: 1–8 times
Touch switch Switch resolution Analog: 1,024×1,024 Analog: 1,024×1,024
Matrix: 40×24
Mechanical life 1 million times or more
Surface treatment Hard coating, Non glare finish 5%
Function switch Number of function switches 8 switches
External interface D-Sub 9 pin (CN1) RS-232C, RS-422/485, Asynchronous type,
Data length : 7,8 bits,
Parity : even, odd, none, Stop bit : 1,2 bits,
Baud rate : 4800, 9600, 19200, 38400, 57600, 76800, 115200, 187500 *3bps
Modular 8 pin (MJ1/ MJ2) RS-232C, RS-422/485 (two-wire system), Asynchronous type, Data length : 7,8 bits,
Parity : even, odd, none, Stop bit : 1,2 bits,
Baud rate : 4800, 9600, 19200, 38400, 57600, 76800, 115200bps
CF card interface Compatible with CompactFlash TM
Ethernet Complies with IEEE802.3
Baud rate: 10Mbps, 100Mbps Cable: 100Ω Unsealed twist pair, Category 5, Max length: 100m
USB Type A, Type B (Ver1.1)
Clock & Back up memory Battery Coin-type lithium primary battery
Back up memory(SRAM) 512KB 128KB
Back up period 5 years (Ambient temperature 25°C)
Calendar accuracy Gap±90 sec. per month (Ambient temperature 25°C)
  • *3 Only when connected with SIEMENS MPI
