640*480 Resolution Fuji Electric HMI 5.7 Inches Hakko V9060iT
  • 640*480 Resolution Fuji Electric HMI 5.7 Inches Hakko V9060iT
  • 640*480 Resolution Fuji Electric HMI 5.7 Inches Hakko V9060iT

640*480 Resolution Fuji Electric HMI 5.7 Inches Hakko V9060iT

Place of Origin China/Japan
Brand Name FUJI
Model Number V9060iT
Product Details
Screen Memory (FROM):
64MB
Display Size:
5.7"
Display Device:
TFT Color LCD
Resolution:
640*480
Backlight:
LED
Backlight Life:
50,000 Hours
Type:
Analog Resistance Film
Port:
Guangdong Shenzhen Dongguan
High Light:

640*480 Fuji Electric HMI

,

5.7 Inches Fuji Electric HMI

,

V9060iT

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$150-$2000
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

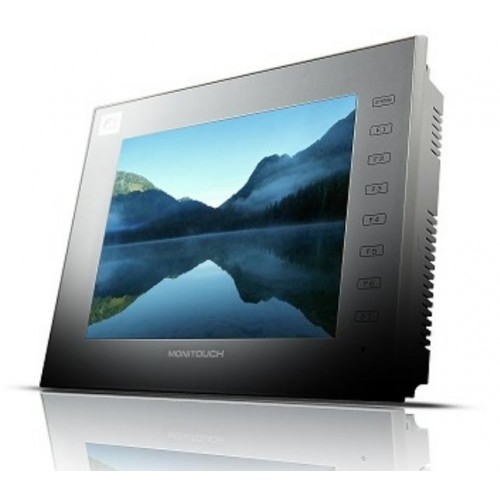

640*480 Resolution 5.7" inches FUJI HMI Hakko V9060iT

640*480 Resolution Fuji Electric HMI 5.7 Inches Hakko V9060iT 0

Dimensions and Part Names

  V9060iT
Power supply Rated voltage DC24V
Permissible range of voltage ±10%
Permissible momentary power failure within 1ms
Demand (maximum rating) 13W or less
Insulation resistance   DC500V 10MΩ or more
Physical environment Ambient temperature 0~50℃*1
Ambient humidity 85%RH or less (without dew condensation)*1
Operation altitude 2,000 meters or lower
Atmosphere Not to be exposed to corrosive gas, or conductive dust
Storage temperature -10~60℃*1
Storage temperature 85%RH or less (without dew condensation)*1
Overvoltage category Category II
Pollution degree Pollution degree 2
Mechanical operating conditions Resistance to oscillation Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5~9Hz, pulsating with:3.5mm,
9~150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each)
Resistance to shock Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z:
3 directions, three times each (18 times in total)
Electric operating conditions Resistance to noise Noise voltage: 1,000Vp-p, pulse width: 1μs, pulse rise time: 1ns
Resistance to static discharge Complies with IEC61000-4-2, contact: 6kV, air: 8kV
Installation conditions Grounding Grounding resistance: Less than 100Ω, FG/SG separation
Structure Protection structure: Front case: IP66, Type 4X/13(when water-proof gasket is used), Rear case: IP20, single unit, installation method: panel mounting
Cooling system Natural air cooling
Dimensions W*H*D(mm) 182.5×138.8×53.0
Dimensions W*H*D(mm) 174.0×131.0(+0.5/-0)
Case color   Light gray
(black front housing for black model)
Material   PC resin
  • *1: Use at a wet-bulb temperature of 39°C or less because higher temperatures may cause failure.

Performance Specifications

Screen memory (FROM)   64MB
Backup memory (SRAM)   800KB
Display Display device TFT color LCD
Resolution 640×480
Display size 5.7″
Colors 260 thousand *2
Backlight LED
Backlight life 50,000 hours
Touch switch Type Analog resistance film
Function switch Quantity 6
External interface D-Sub 9-pin (CN1)*3 RS-232C, RS-485(two-wire system), RS-422(four-wire system), Asynchronous type,
Data length: 7,8 bits, Parity: even, odd, none,
Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps
Modular 8-pin
(MJ1/ MJ2)
RS-232C, RS-485(two-wire system), RS-422(four-wire system)*4 , Asynchronous type,
Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600,
19200, 38400, 57600, 76800, 115200, 187500*5 bps
SD card One card slot provided as standard
Ethernet 1ch,
Baud rate: 100Mbps, 10Mbps
Wireless LAN -
USB Type A,Type mini-B(Ver.2.0)
Sound output -
Clock Backup period 5 years (Ambient temperature 25°C)
Calendar accuracy Gap ±90 sec. per month (Ambient temperature 25°C, when power is not supplied)
Standard CE marking EN61000-6-2, EN61000-6-4
UL・cUL UL61010-1,UL61010-2-201*6 ,ANSI/ISA 12.12.01
KC *7 Compliant
Radio Act -
Classification Standard   Nippon Kaiji Kyokai (NK)
American Bureau of Shipping (ABS)
Lloyd's Register of Shipping (LR)
Det Norske Veritas (DNV)
  • *2: For displaying pictures, 3D parts,video, and RGB input (excluding high-speed mode) only. Other parts are displayed in 65,536 colors.
  • *3: Optional unit (DUR-00) is required for the V9071iW and V9060iTD.
  • *4: 187,500 bps (four-wire system) for the V9071iW and V9060iTD MJ2 only.
  • *5: Only for Siemens MPI (Incompatible with DUR-00).
  • *6: Only for Hardware Ver. f or later. Applicable standard for Hardware Ver. a to e is UL 508.
  • *7: Black model not certified
