DC PLC Omron Sysmac CP1H CP1H-XA40DT-D-SC Programmable Logic Controller
  • DC PLC Omron Sysmac CP1H CP1H-XA40DT-D-SC Programmable Logic Controller
  • DC PLC Omron Sysmac CP1H CP1H-XA40DT-D-SC Programmable Logic Controller
  • DC PLC Omron Sysmac CP1H CP1H-XA40DT-D-SC Programmable Logic Controller
  • DC PLC Omron Sysmac CP1H CP1H-XA40DT-D-SC Programmable Logic Controller

DC PLC Omron Sysmac CP1H CP1H-XA40DT-D-SC Programmable Logic Controller

Place of Origin China/Japan
Brand Name OMRON
Model Number CP1H-XA40DT-D-SC
Product Details
Condition:
100% Original And New
Warranty:
1 Year
Package:
Original Packing
Shipping Ways:
DHL,FedEx,EMS
MOQ:
1 Piece
Color:
Black Or White
Model Number:
CP1H
Brand:
OMRON
Product Name:
Programmable Logic Controller
Packaging:
Original Carton
Port:
Selectable
High Light:

DC PLC Omron Sysmac CP1H

,

CP1H-XA40DT-D-SC PLC Omron Sysmac CP1H

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$50-500
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

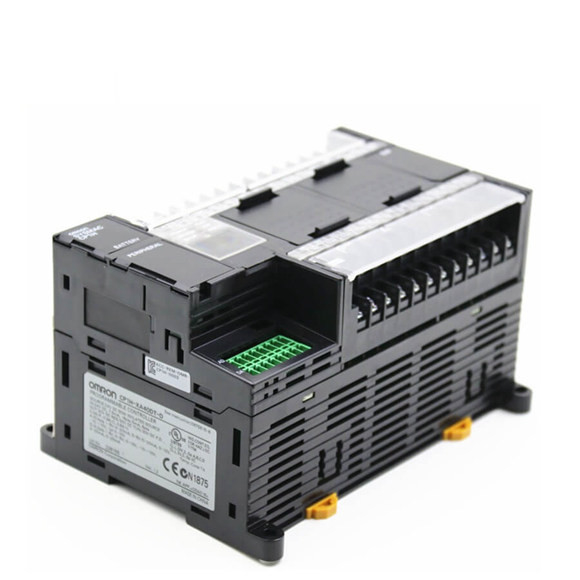

Omron CP series CP1H CPU Unit CP1H-XA40DT-D-SC

Omron Electronics CP1 Series Micro Programmable Logic Controller CPU Module, built-in analog I/O terminals & USB + 2 Option ports, 40 points: 24-inputs/16-NPN (transistor sinking) outputs, 320 I/O max capacity, 24 VDC

Browse All Omron Products

  • Manufacturer: Omron
  • Product Type: Programmable Controller
  • High Speed Counters: 102 kHz 4 axes
  • Output Method: Transistor output (sinking)
  • Power Supply: DC
  • Program Capacity: 20 K steps
  • Compatible Software: CX-One, CX-One Lite

Specification

Models CP1H-XA CPU Units CP1H-X CPU Units CP1H-Y CPU Units
  CP1H-XA@@@@ CP1H-X@@@@ CP1H-Y@@@@
Control method Stored program method
I/O control method Cyclic scan with immediate refreshing
Program language Ladder diagram
Function blocks Maximum number of function block definitions: 128 Maximum number of instances: 256 Languages usable in function block definitions: Ladder diagrams, structured text (ST)
Instruction length 1 to 7 steps per instruction
Instructions Approx. 500 (function codes: 3 digits)
Instruction execution time Basic instructions: 0.10 ms min. Special instructions: 0.15 ms min.
Common processing time 0.7 ms
Program capacity 20K steps
Number of tasks 288 (32 cyclic tasks and 256 interrupt tasks)
Maximum subroutine number 256
Maximum jump number 256
Work bits 8,192 bits (512 words): W0.00 to W511.15 (W0 to W511)CIO Area: 37,504 bits (2,344 words): CIO 3800.00 to CIO 6143.15 (CIO 3800 to CIO 6143)
TR Area 16 bits: TR0 to TR15
Holding Area 8,192 bits (512 words): H0.00 to H511.15 (H0 to H511)
AR Area Read-only (Write-prohibited): 7168 bits (448 words): A0.00 to A447.15 (A0 to A447) Read/Write: 8192 bits (512 words): A448.00 to A959.15 (A448 to A959)
Timers 4,096 bits: T0 to T4095
Counters 4,096 bits: C0 to C4095
DM Area 32 Kwords: D0 to D32767
Data Register Area 16 registers (16 bits): DR0 to DR15
Index Register Area 16 registers (32 bits): IR0 to IR15
Task Flag Area 32 flags (32 bits): TK0000 to TK0031
Trace Memory 4,000 words (500 samples for the trace data maximum of 31 bits and 6 words.)
Memory Cassette A special Memory Cassette (CP1W-ME05M) can be mounted. Note: Can be used for program backups and auto-booting.
Clock function Supported. Accuracy (monthly deviation): -4.5 min to -0.5 min (ambient temperature: 55°C),-2.0 min to +2.0 min (ambient temperature: 25°C), -2.5 min to +1.5 min (ambient temperature: 0°C)
Memory backup Flash memory: User programs, parameters (such as the PLC Setup), comment data, and the entire DM Area can be saved to flash memory as initial values.Battery backup: The Holding Area, DM Area, and counter values (flags, PV) are backed up by a battery.
Battery service life 5 years at 25°C. (Use the replacement battery within two years of manufacture.)
Built-in input terminals 40 (24 inputs, 16 outputs) 20 (12 inputs, 8 outputs)Line-driver inputs: Two axes for phases A, B, and Z Line-driver outputs: Two axes for CW and CCW
Number of connectable Expansion (I/O) Units CP Expansion I/O Units: 7 max.; CJ-series Special I/O Units or CPU Bus Units: 2 max.
Max. number of I/O points 320 (40 built in + 40 per Expansion (I/O) Unit ´ 7 Units) 300 (20 built in + 40 per Expansion (I/O) Unit ´ 7 Units)
Interrupt inputs 8 inputs (Shared by the external interrupt inputs (counter mode) and the quick-response inputs.) 6 inputs (Shared by the external interrupt inputs (counter mode) and the quick-response inputs.)
Interrupt input counter mode 8 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bitsUp or down counters 6 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bitsUp or down counters
Quick-response inputs 8 points (Min. input pulse width: 50 ms max.) 6 points (Min. input pulse width: 50 ms max.)
Scheduled interrupts 1





High-speed counters



4 inputs: Differential phases (4x), 50 kHz or

Single-phase (pulse plus direction, up/down, increment), 100 kHz

Value range: 32 bits, Linear mode or ring mode Interrupts: Target value comparison or range comparison

2 inputs: Differential phases (4x), 500 kHz or Single-phase, 1 MHz and2 inputs: Differential phases (4x), 50 kHz or Single-phase (pulse plus direction, up/down, increment),



100 kHz

Value range: 32 bits, Linear mode or ring mode Interrupts: Target value comparison or range comparison

Built-in analog I/O terminals 4 analog inputs and 2 analog outputs None
Analog control 1 (Setting range: 0 to 255)
External analog input 1 input (Resolution: 1/256, Input range: 0 to 10 V), not isolated
