CP1H-XA40DR-A Omron PLC CP1H Black CPU Module Pulse Output
  • CP1H-XA40DR-A Omron PLC CP1H Black CPU Module Pulse Output
  • CP1H-XA40DR-A Omron PLC CP1H Black CPU Module Pulse Output
  • CP1H-XA40DR-A Omron PLC CP1H Black CPU Module Pulse Output
  • CP1H-XA40DR-A Omron PLC CP1H Black CPU Module Pulse Output
  • CP1H-XA40DR-A Omron PLC CP1H Black CPU Module Pulse Output

CP1H-XA40DR-A Omron PLC CP1H Black CPU Module Pulse Output

Place of Origin China/Japan
Brand Name OMRON
Model Number CP1H-XA40DR-A
Product Details
Condition:
100% Original And New
Warranty:
1 Year
Package:
Original Packing
Shipping Ways:
DHL,FedEx,EMS
MOQ:
1 Piece
Color:
Black Or White
Model Number:
CP1H
Brand:
OMRON
Product Name:
Programmable Logic Controller
Packaging:
Original Carton
Port:
Selectable
High Light:

Black Omron PLC CP1H

,

CPU Module Omron PLC CP1H

,

CP1H-XA40DR-A Omron PLC Pulse Output

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$50-500
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

CP1H-XA40DR-A Omron CP1 Series PLC CPU Module Pulse Output

Features

  • Pulse output for 4 axes. Advanced power for high-precision positioning control.
  • High-speed counters. Differential phases for 4 axes. Easily handles multi-axis control with a single unit.
  • Eight interrupt inputs are built in. Faster processing of approximately 500 instructions speeds up the entire system.
  • Serial communications. Two ports. Select Option Boards for either RS-232C or RS-485 communications.
  • Ethernet Communications. Enabled by using an Option Board. Two ports can be used as an Ethernet port to perform. Ethernet communications between the CP1H and a host computer.
  • Built-in Analog I/O. XA CPU Units provide 4 input words and 2 output words.
  • USB Peripheral Port. Another standard feature.
  • The structured text (ST) language. Makes math operations even easier.
  • Can be used for the CP1W series and CJ series Unit. The extendibility of it is preeminently good.
  • LCD displays and settings. Enabled using Option Board.

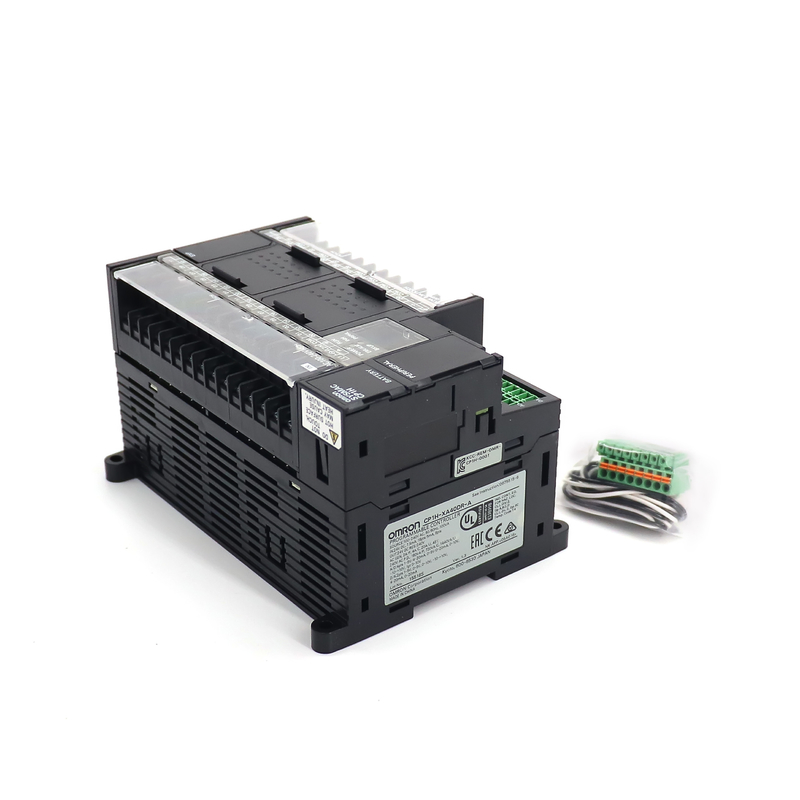

CP1H-XA40DR-A Omron PLC CP1H Black CPU Module Pulse Output 0

Specifications

Supply voltage type AC
Number of digital inputs 24
Input type PNP/NPN
Number of digital outputs 16
Output type Relay
Program capacity 20 K steps
Data memory capacity 32 K words
Logic execution time 0.10s
Communication port(s) USB
Number of Ethernet ports 0
Number of USB ports 1
Number of RS-232 ports 0
Number of RS-485 ports 0
Communication option(s) CAN, CompoBus/S Master, CompoBus/S Slave, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, Ethernet TCP/IP, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485
Number of analog inputs 4
Number of analog outputs 2
Number of encoder input channels 4
Max. encoder input frequency 100 kHz
Max. number of PTP axes 0
Max. pulse output frequency 0 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels 62
Max. number of local I/O points 320
Max. number of expansion units 7
Built-in auxiliary 24 VDC output 300 mA
Operating temperature range 0-55 C
Height 90 mm
Width 150 mm
Depth 85 mm
Weight 750 g
Weight 600 g

Accessories

CP1W-CIF01 CP1 RS-232C (15 m max.) serial communication option board
CP1W-CIF11 CP1 RS422/485 (50 m max.) serial communication option board
CP1W-CIF12-V1 CP1 RS422/485 (isolated 500 m max.) serial communication option board
CP1W-CIF41 CP1 Ethernet communications option, 1 x RJ45 socket
CP1W-CN221 USB Programming cable, A-type male to B-type male, 1.8 m
CP1W-CN811 I/O expansion cable for CP1-series, 80 cm
CP1W-EXT01 CP1H CPU to CJ1W unit adapter, includes CJ endplate
CP1W-ME05M CP1 memory cassette (for upload/download of user program)
CXONE-LT01-EV4 CX-One Lite v4.x software, for Windows 2000/XP/Vista, single-user licence only, (requires CDs, CXOne-LTCD-EV4), limited to program the CPx PLC platform
CP2W-BAT02 CP2-series Battery - Optional
