CP1H-XA40DT-D CP Series Omron PLC CP1H Series On Sell
  • CP1H-XA40DT-D CP Series Omron PLC CP1H Series On Sell

CP1H-XA40DT-D CP Series Omron PLC CP1H Series On Sell

Place of Origin China/Japan
Brand Name Omron
Model Number CP1H-XA40DT-D
Product Details
Key Word:
CP1H-XA40DT-D
Brand:
Omron
Condition:
New
Lead Time:
Stock
MOQ:
1
Place Of Origin:
China/Japan
Currency:
USD/RMB
Warranty:
12 Month
Shipping Term:
DHL/TNT/UPS/FEDEX Etc
Product Name:
Controller Programmable Logic,Omron PLC CP1L-M40DR-D
Package:
Original Package
Type:
PLC,Eletronic Component
Application:
Industrial Etc,Automation
Service:
One-stop Service
Supply Voltage:
100 To 240 VAC 50/60 Hz
High Light:

CP1H-XA40DT-D Omron PLC CP1H

,

CP Series Omron PLC CP1H

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
USD100-5000/pc
Packaging Details
Carton packaging
Delivery Time
3-5working days
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

Omron CP series CP1H CPU Unit CP1H-XA40DT-D

Prduct Details

  • Omron CP series CP1H CPU Unit CP1H-XA40DT-D CP1H-XA40DR-A
  • Omron PLC Controller Module CP-series
  • We are First Class Omron plc dealer and omron plc distributor in China.
  • We can Supply Omron automation parts,such as Omron PLC,Omron Servo Motor,Omron HMI,Omron VFD and Omron Relay and Omron Sensor and ect.
  • 100% Original and new,In stock by Omron Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
  •
  • Specification
  •
  • Models CP1H-XA CPU Units CP1H-X CPU Units CP1H-Y CPU Units
    Control method Stored program method
    I/O control method Cyclic scan with immediate refreshing
    Program language Ladder diagram
    Function blocks Maximum number of function block definitions: 128 Maximum number of instances: 256 Languages usable in function block definitions: Ladder diagrams, structured text (ST)
    Instruction length 1 to 7 steps per instruction
    Instructions Approx. 500 (function codes: 3 digits)
    Instruction execution time Basic instructions: 0.10 ms min. Special instructions: 0.15 ms min.
    Common processing time 0.7 ms
    Program capacity 20K steps
    Number of tasks 288 (32 cyclic tasks and 256 interrupt tasks)
    Maximum subroutine number 256
    Maximum jump number 256
    Work bits 8,192 bits (512 words): W0.00 to W511.15 (W0 to W511)



    CIO Area: 37,504 bits (2,344 words): CIO 3800.00 to CIO 6143.15 (CIO 3800 to CIO 6143)


    TR Area 16 bits: TR0 to TR15
    Holding Area 8,192 bits (512 words): H0.00 to H511.15 (H0 to H511)
    AR Area Read-only (Write-prohibited): 7168 bits (448 words): A0.00 to A447.15 (A0 to A447) Read/Write: 8192 bits (512 words): A448.00 to A959.15 (A448 to A959)
    Timers 4,096 bits: T0 to T4095
    Counters 4,096 bits: C0 to C4095
    DM Area 32 Kwords: D0 to D32767
    Data Register Area 16 registers (16 bits): DR0 to DR15
    Index Register Area 16 registers (32 bits): IR0 to IR15
    Task Flag Area 32 flags (32 bits): TK0000 to TK0031
    Trace Memory 4,000 words (500 samples for the trace data maximum of 31 bits and 6 words.)
    Memory Cassette A special Memory Cassette (CP1W-ME05M) can be mounted. Note: Can be used for program backups and auto-booting.
    Clock function Supported. Accuracy (monthly deviation): -4.5 min to -0.5 min (ambient temperature: 55°C),



    -2.0 min to +2.0 min (ambient temperature: 25°C), -2.5 min to +1.5 min (ambient temperature: 0°C)





    Memory backup

    Flash memory: User programs, parameters (such as the PLC Setup), comment data, and the entire DM Area can be saved to flash memory as initial values.



    Battery backup: The Holding Area, DM Area, and counter values (flags, PV) are backed up by a battery.


    Battery service life 5 years at 25°C. (Use the replacement battery within two years of manufacture.)



    Built-in input terminals



    40 (24 inputs, 16 outputs)

    20 (12 inputs, 8 outputs)



    Line-driver inputs: Two axes for phases A, B, and Z Line-driver outputs: Two axes for CW and CCW


    Number of connectable Expansion (I/O) Units CP Expansion I/O Units: 7 max.; CJ-series Special I/O Units or CPU Bus Units: 2 max.
    Max. number of I/O points 320 (40 built in + 40 per Expansion (I/O) Unit ´ 7 Units) 300 (20 built in + 40 per Expansion (I/O) Unit ´ 7 Units)
    Interrupt inputs 8 inputs (Shared by the external interrupt inputs (counter mode) and the quick-response inputs.) 6 inputs (Shared by the external interrupt inputs (counter mode) and the quick-response inputs.)



    Interrupt input counter mode

    8 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bits



    Up or down counters

    6 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bits



    Up or down counters


    Quick-response inputs 8 points (Min. input pulse width: 50 ms max.) 6 points (Min. input pulse width: 50 ms max.)
    Scheduled interrupts 1







    High-speed counters





    4 inputs: Differential phases (4x), 50 kHz or

    Single-phase (pulse plus direction, up/down, increment), 100 kHz

    Value range: 32 bits, Linear mode or ring mode Interrupts: Target value comparison or range comparison

    2 inputs: Differential phases (4x), 500 kHz or Single-phase, 1 MHz and



    2 inputs: Differential phases (4x), 50 kHz or Single-phase (pulse plus direction, up/down, increment),

    100 kHz

    Value range: 32 bits, Linear mode or ring mode Interrupts: Target value comparison or range comparison

    Built-in analog I/O terminals 4 analog inputs and 2 analog outputs None
    Analog control 1 (Setting range: 0 to 255)
    External analog input 1 input (Resolution: 1/256, Input range: 0 to 10 V), not isolated

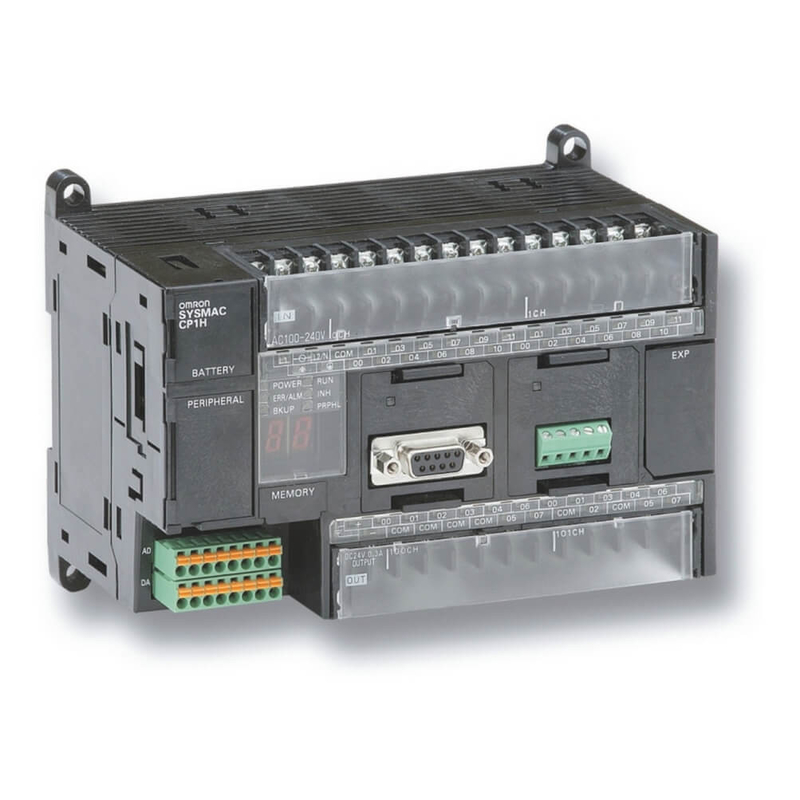

CP1H-XA40DT-D CP Series Omron PLC CP1H Series On Sell 0

Description 1. Digital Computer ,Used For Automation Of Electromechanical Processes.
2. Plcs Are Armored For Severe Conditions(Such As Dust, Moisture, Heat, Cold).
3. The Structure Of A Plc Can Be Divided Into Four Parts.They Are Input/Output Modules, Central Processing Unit(Cpu),
Feature 1. Armored for severe conditions and have the facility for extensive input/output (I/O) arrangements.
2. Read limit switches, analog process variables and the positions of complex positioning systems.
3. Operate electric motors, pneumatic or hydraulic cylinders, solenoids, or analog outputs
4. Industry, Sequential control, motion control.
5. process control, distributed control systems and networking
Application 1. Power industry, the elevator industry, parking, automobile, auto ancillary.
2. feed industry, aluminum smelting machines, refrigeration industry.
3. steel industry, combustion control systems, non-ferrous metal smelting.
4. glass industry, construction machinery, textile machinery, water treatment





Packaging & Shipping



1. We will ship the items within 3 working days after the payment is reached.
2. All the goods will be tested before shipment.
3. Packing in professional anti-static bag.
4. We can ship to you by DHL/TNT/UPS/EMS/Fedex... Pls contact us directly and we will ship as your requirement.



FAQ


1.Q: How about the warranty ?
A: Aiwell provide 12 months warranty for all the goods from us , and you can refund the goods with any quality problem in 15 days.
2.Q: Other supplier have a better pice than yours.
A: "To create more benefit fir clients"is our belief, if you have a better price , please let Aiwell know , we will try best to meet your price and support you.
3.Q: We have not cooperation before , how we can believe you ?
A: For our first order , you can pay after we prepare the goods.
4.Q: What about shipment ?
A: We have DHL forwarder with competitive price , of course , cutsomers can also use their own freight forwarders.



1. Q: Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.

2. Q: Could ZN provide technology support?
A: We're in this field many year. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.

3. Q: Does ZN keeps goods in stock or only trading?
A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
