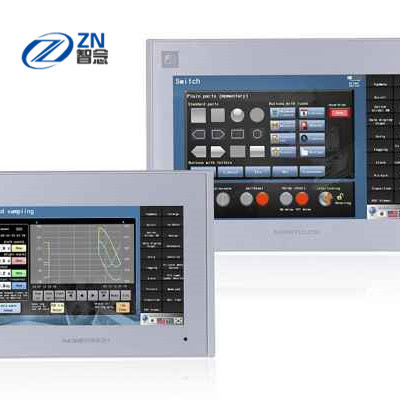

V9100iC Monitouch V9 Series Human Machine Interfaces
  • V9100iC Monitouch V9 Series Human Machine Interfaces
  • V9100iC Monitouch V9 Series Human Machine Interfaces
  • V9100iC Monitouch V9 Series Human Machine Interfaces

V9100iC Monitouch V9 Series Human Machine Interfaces

Place of Origin China/Japan
Brand Name FUJI
Model Number V9100iC
Product Details
Display Device:
TFT Color LCD
Resolution:
1024*768
Backlight:
LED
Backlight Life:
100,000 Hours
Type:
Analog Resistance Film
Rated Voltage:
100-240V AC/ 24V DC
Permissible Range Of Voltage:
AC: -15%, +10%/ DC: ±10%
High Light:

V9100iC Monitouch

,

V9 Series Human Machine Interfaces

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$150-$2000
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

V9100iS Programmable Display V9100iS Series 10.4 inch HMI

Features

V9100iC Monitouch V9 Series Human Machine Interfaces 0



Dimensions and Part Names

  V9100iC
Power supply Rated voltage 100-240V AC/ 24V DC
Permissible range of voltage AC: -15%, +10%/ DC: ±10%
Permissible momentary power failure AC within 20ms, DC within 1ms
Demand (maximum rating) AC: 50VA or less/ DC: 17W or less
Insulation resistance   DC500V 10MΩ or more
Physical environment Ambient temperature 0~50℃*1
Ambient humidity 85%RH or less (without dew condensation)*1
Operation altitude 2,000 meters or lower
Atmosphere Not to be exposed to corrosive gas, or conductive dust
Storage temperature -10~60℃*1
Storage humidity 85%RH or less (without dew condensation)*1
Overvoltage category Category II
Pollution degree Pollution degree 2
Mechanical operating conditions Resistance to oscillation Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5-9Hz, pulsating with:3.5mm,
9-150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each)
Resistance to shock Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z:
3 directions, three times each (18 times in total)
Electric operating conditions Resistance to noise Noise voltage: 1,500Vp-p, pulse width: 1μs, pulse rise time: 1ns
Resistance to static discharge Complies with IEC61000-4-2, contact: 6kV, air: 8kV
Installation conditions Grounding Grounding resistance: Less than 100Ω, FG/SG separation
Structure Front panel:Complies with IP66, Type 4X/13 *2 (when waterproof gasket is installed)
Rear cover:Complies with IP20
Form: Single unit, Installation method: Panel mounting
Cooling system Natural air cooling
Dimensions W*H*D(mm) 303.8×231.0×54.0
Panel cutout (mm) 289.0×216.2(+0.5/-0)
Case color   Light gray
(black front housing for black model)
Material   PC resin
  • *1: Use at a wet-bulb temperature of 39°C or less because higher temperatures may cause failure.

Performance Specifications

Screen memory (FROM)   64MB
Backup memory (SRAM)   800KB
Display Display device TFT color LCD
Resolution 640×480
Display size 10.4″
Colors 16.7 million *3
Backlight LED
Backlight life 70,000 hours
Touch switch Type Analog resistance film
Function switch Quantity 8
External interface D-Sub 9-pin (CN1) RS-232C/ RS-485(2-wire system)/ RS-422(4-wire system),
Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none,
Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200, 187500*4bps
Modular 8-pin
(MJ1/MJ2)
RS-232C/ RS-485(2-wire system), Asynchronous type,
Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits,
Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps
SD card One card slot provided as standard
Ethernet 1ch,
Baud rate: 100Mbps, 10Mbps
Wireless LAN -
USB Type A,Type mini-B(Ver.2.0)
Sound output -
Clock Backup period 5 years (Ambient temperature 25°C)
Calendar accuracy Gap ±90 sec. per month (Ambient temperature 25°C, when power is not supplied)
Standard CE marking*5 EN61000-6-2,EN61000-6-4
UL・cUL*5 UL61010-1,UL61010-2-201*6
KC*7 Compliant
Radio Act -
Classification Standard   -
  • *2: DC products only. Hardware of Ver. b or later.
  • *3: For displaying pictures, 3D parts,video, and RGB input (excluding high-speed mode) only. Other parts are displayed in 65,536 colors.
  • *4: Only for Siemens MPI (Incompatible with DUR-00).
  • *5: DC products only.
  • *6: Only for Hardware Ver. f or later. Applicable standard for Hardware Ver. a to e is UL 508.
  • *7: Black model not certified

Dimensions and Part Names

(Unit: mm)

Side view Front view Rear view
Side view Front view Rear view
Bottom view Panel cutout
Bottom view Panel cutout
Part Names
  1. 1Display
  2. 2Function switch
  3. 3Power lamp
  4. 4Communication unit connector (EXT1)
  5. 5Fall prevention hook
  6. 6Optional unit connector (EXT2)
  7. 7SD card access LED
  8. 8Battery holder
  9. 9DIP switch
  10. 10USB cable holding hole
  11. 11SD card connector
  1. 12Sound output connector (AUDIO)
  2. 13Power input terminal block
  3. 14Modular jack 1 (MJ1)
  4. 15Modular jack 2 (MJ2)
  5. 16PLC connector (CN1)
  6. 17100BASE-TX/10BASE-T port (LAN)
  7. 18USB-A(U-A)
  8. 19USB mini-B(U-B)
  9. 20Screw hole
