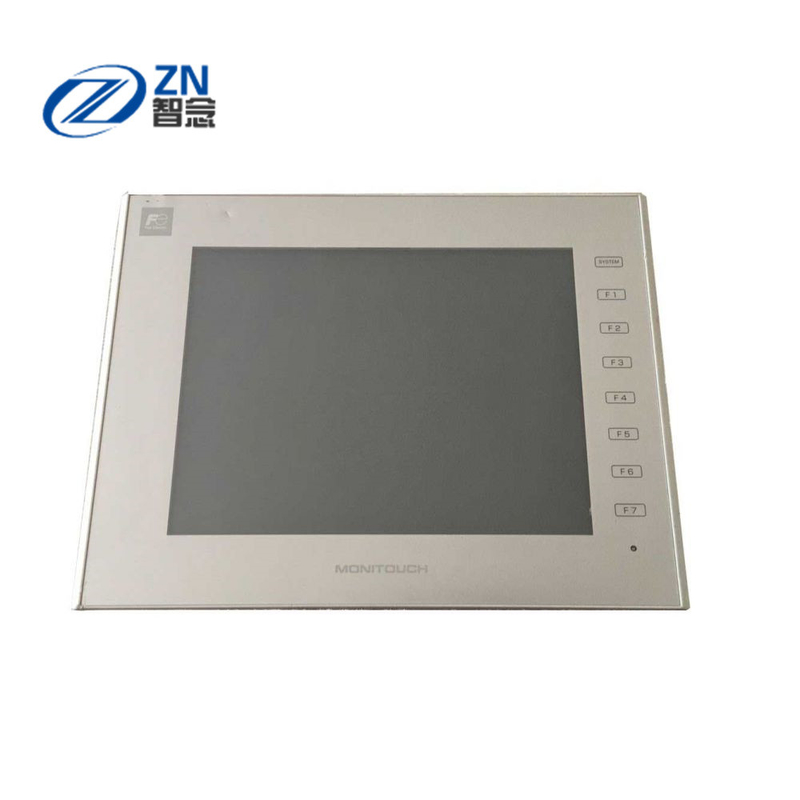

V9060iTD 5.7inches Programmable Display V9060iT Series
  • V9060iTD 5.7inches Programmable Display V9060iT Series
  • V9060iTD 5.7inches Programmable Display V9060iT Series
  • V9060iTD 5.7inches Programmable Display V9060iT Series

V9060iTD 5.7inches Programmable Display V9060iT Series

Place of Origin China/Japan
Brand Name FUJI
Model Number V9060iTD
Product Details
Display Device:
TFT Color LCD
Resolution:
1024*768
Backlight:
LED
Screen Memory (FROM):
64MB
Type:
Analog Resistance Film
Rated Voltage:
100-240V AC/ 24V DC
Permissible Range Of Voltage:
AC: -15%, +10%/ DC: ±10%
High Light:

5.7inches Programmable Display

,

V9060iTD Programmable Display

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$150-$2000
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

V9060iTD 5.7inches Programmable Display V9060iT Series

Features



V9060iTD 5.7inches Programmable Display V9060iT Series 0

Dimensions and Part Names

  V9060iT
Power supply Rated voltage DC24V
Permissible range of voltage ±10%
Permissible momentary power failure within 1ms
Demand (maximum rating) 17W or less
Insulation resistance   DC500V 10MΩ or more
Physical environment Ambient temperature 0~50℃*1
Ambient humidity 85%RH or less (without dew condensation)*1
Operation altitude 2,000 meters or lower
Atmosphere Not to be exposed to corrosive gas, or conductive dust
Storage temperature -10~60℃*1
Storage temperature 85%RH or less (without dew condensation)*1
Overvoltage category Category II
Contamination level Level 2
Mechanical operating conditions Resistance to oscillation Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5̃9Hz, pulsating with:3.5mm,
9̃150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each)
Resistance to shock Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z:
3 directions, three times each (18 times in total)
Electric operating conditions Resistance to noise Noise voltage: 1,000Vp-p, pulse width: 1μs, pulse rise time: 1ns
Resistance to static discharge Complies with IEC61000-4-2, contact: 6kV, air: 8kV
Installation conditions Grounding Grounding resistance: Less than 100Ω, FG/SG separation
Structure Front panel:Complies with IP66, Type 4X/13 (when waterproof gasket is installed)
Rear cover:Complies with IP20
Form: Single unit, Installation method: Panel mounting
Cooling system Natural air cooling
Dimensions W*H*D(mm) 182.5×138.8×53.0
Dimensions W*H*D(mm) 174.0×131.0(+0.5/-0)
Case color   Light gray
Material   PC
  • *1: Keep wet bulb temperature under 39°C to avoid malfunction.

Performance Specifications

Screen memory (FROM)   64MB
Backup memory (SRAM)   800KB
Display Display device TFT color LCD
Resolution 640×480
Display size 5.7″
Colors 260,000 *2
Backlight LED
Backlight life 50,000 hours
Touch switch Type Analog resistance film
Function switch Quantity 6
External interface D-Sub 9-pin (CN1)*3 RS-232C/ RS-422/485, Asynchronous type,
Data length: 7,8 bits, Parity: even, odd, none,
Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200,187500*4bps
Modular 8-pin
(MJ1/ MJ2)
RS-232C/ RS-422/485 (two-wire system), Asynchronous type,
Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600,
19200, 38400, 57600, 76800, 115200 bps
SD card One card slot provided as standard
Ethernet 1ch,
Baud rate: 100Mbps, 10Mbps
Wireless LAN -
USB Type A,Type mini-B(Ver.2.0)
Sound output -
Clock Backup period 5 years (Ambient temperature 25°C)
Calendar accuracy Gap ±90 sec. per month (Ambient temperature 25°C, when power is not supplied)
Standard CE marking EN61000-6-2,EN61000-6-4
UL・cUL UL508,ANSI/ISA 12.12.01
KC Compliant
Radio Act -
