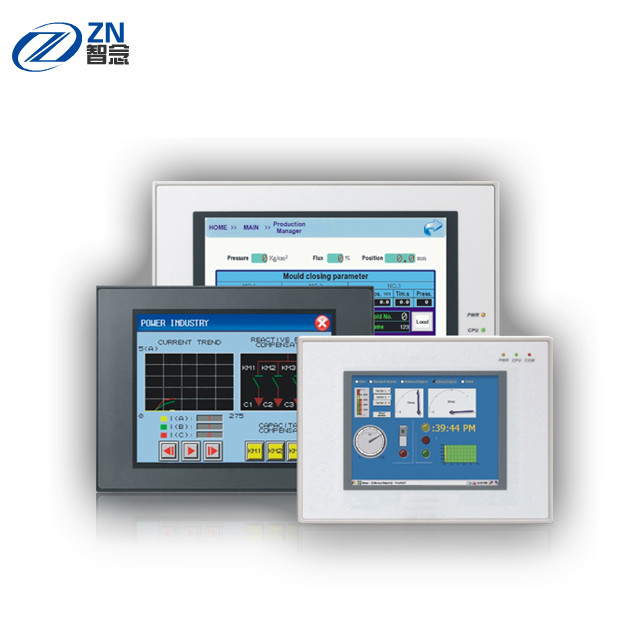

TS2060i Programmable Display Technoshot TS2000 Smart Series HMI
  • TS2060i Programmable Display Technoshot TS2000 Smart Series HMI

TS2060i Programmable Display Technoshot TS2000 Smart Series HMI

Place of Origin China/Japan
Brand Name FUJI
Model Number TS2060i
Product Details
Display Device:
TFT Color
Screen Size:
7.0” Widescreen
Backlight:
LED
Screen Memory (FROM):
64MB
Type:
Analog Resistance Film
Rated Voltage:
100-240V AC/ 24V DC
Permissible Range Of Voltage:
AC: -15%, +10%/ DC: ±10%
High Light:

TS2060i Programmable Display

,

TS2000 Smart Series HMI

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$150-$2000
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

V9060iTD 5.7inches Programmable Display V9060iT Series

Features



TS1070Si | Hakko Electronic | Programmable Display Technoshot TS1000 Smart  Series

Basic specifications

  TS2060 TS2060i
Power supply Rated voltage 24VDC
Permissible range of voltage 24VDC ± 10%
Permissible momentary power failure Within 1ms
Demand (maximum rating) 13W or less
Insulation resistance   Between DC external terminal and FG: 500VDC 10MΩ or more
Physical environment Ambient temperature 0 degC ~ +50 degC *1
Ambient humidity 85%RH or less (without dew condensation) *1
Operation altitude 2,000 meters or lower
Atmosphere Not to be exposed to corrosive gas, or conductive dust
Storage temperature -10 ~ 60 degC *1
Storage humidity 85%RH or less (without dew condensation) *1
Overvoltage category Category II
Contamination level Level 2
Mechanical operating conditions Resistance to oscillation Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5-9Hz, pulsating with:3.5mm, 9-150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each)
Resistance to shock Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z: 3 directions, three times each (18 times in total)
Electric operating conditions Resistance to noise Noise voltage: 1,000Vp-p, pulse width: 1μs, pulse rise time: 1ns
Resistance to static discharge Complies with IEC61000-4-2, contact: 6kV, air: 8kV
Installation conditions Grounding Grounding resistance: Less than 100Ω, FG/SG separation
Protection Structure Front panel: Complies with IP65 (when waterproof gasket is installed) Rear cover: Complies with IP20
Installation method Panel mounting
Cooling system Natural air cooling
Dimensions W*H*D(mm) 182.5 x 138.8 x 45.8mm
Panel cutout (mm) 174.0(-0,+0.5) x 131.0(-0,+0.5) mm (same as V806/V606e)
Case color   Black
Battery   Coin type lithium battery, lifetime: 5 years (ambient temperature 25 degC)
Material   PC
  • *1: Wet-bulb temperature should be 39°C or lower to prevent malfunction.

Performance specifications

  TS2060 TS2060i
Screen program memory (FROM)   2.5MB 10.5MB
Backup memory (SRAM)   128KB 512KB
Stroke fonts   N/A Supported
Display Display device TFT color
Resolution 320 x 240
Display size 5.7" (QVGA)
Colors 65,536 colors (selection of 32K/256/128/monochrome available with software configuration.)
Backlight LED
Backlight lifetime 50,000 hours
Touch switch Type Analog resistance film
Function switches Number of the function switches 6
External interface D-Sub 9-pin *2 N/A RS-232C/ RS-422/485, Asynchronous type, Data length: 7, 8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps
Modular 8-pin(MJ1/MJ2) RS-232C/ RS-422 (4-wire) *3, RS-485 (two-wire), Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200, 187500 bps *4
SD card N/A 1 slot, as standard equipment (SD/SDHC card)
Ethernet N/A 1CH, 100Mbps/10Mbps
USB Type mini-B(Ver.2.0) Type A,Type mini-B(Ver.2.0)
Communication unit N/A CUR-xx supported
Clock Backup period 5 years (Ambient temperature 25 degC)
Calendar accuracy W/ power supply: gap ±210 sec. per month (Ambient temperature 25 degC) W/o power supply: gap ±90 sec. per month (ambient temperature 25 degC, when battery backup is used.)
Standards CE EN61000-6-2, EN61000-6-4
UL/cUL UL61010-1, UL61010-2-201
KC Compliant
  • *2: Available only when DUR-00 is attached to TS2060i.
  • *3: Only MJ2 supports 4-wire system.
  • *4: 187500bps is available only when connected with SIEMENS MPI/PPI . MPI/PPI connection is supported only with MJ2.
