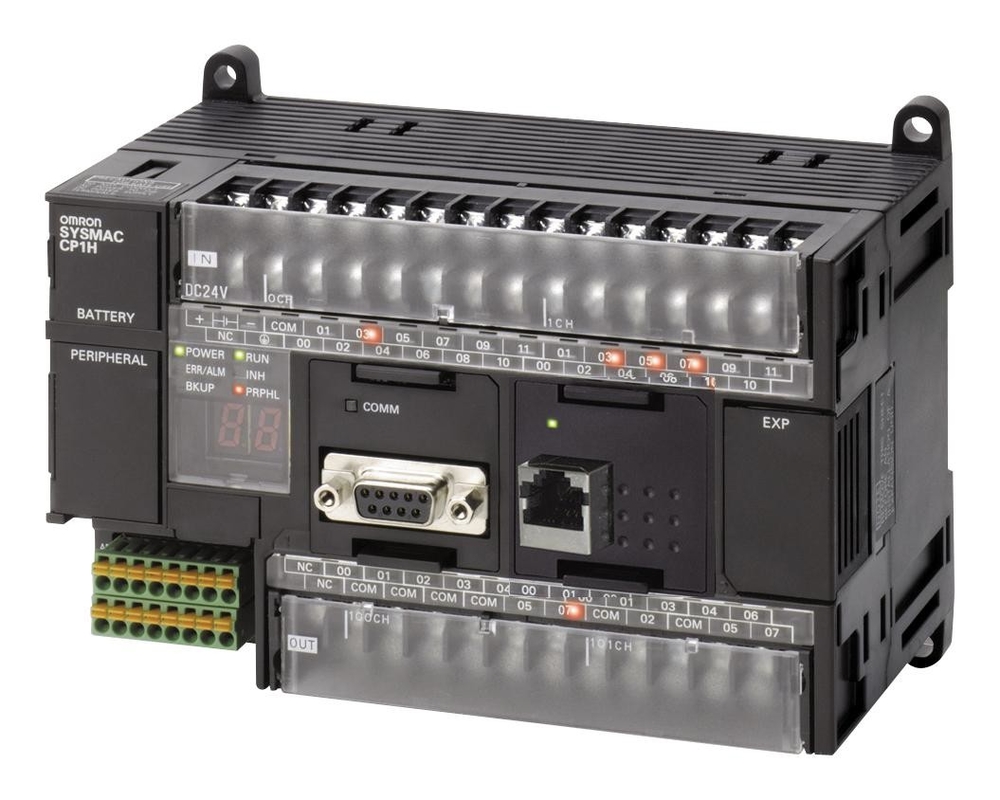

CP1H-XA40DR-A Compact PLC CPU Omron
  • CP1H-XA40DR-A Compact PLC CPU Omron

CP1H-XA40DR-A Compact PLC CPU Omron

Place of Origin China/Japan
Brand Name Omron
Model Number CP1H-XA40DR-A
Product Details
Condition:
100% New
Lead Time:
3-5working Days
MOQ:
1
Place Of Origin:
China
Warranty:
12 Months
Brand:
Omron
High Light:

CP1H-XA40DR-A PLC CPU Omron

,

Compact PLC CPU Omron

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$309-$609usd/Pieces
Packaging Details
Carton packaging
Delivery Time
3-5 working days
Payment Terms
T/T, western union
Supply Ability
100pc/per week
Product Description

CP1H-XA40DR-A Compact PLC CPU Omron

CP1H-XA40DR-A Compact PLC CPU Omron 0



High-Speed, High-Performance Compact PLC with 40 I/O Built In System Advantages

Brick style controller features powerful position control and communications capabilities Built-in functions include digital I/O, high-speed counters, pulse outputs and analog input/outputs integrate process data with sequential control Integrated communications gateway functions make CP1H the first compact PLC in Omron's Smart Platform concept All Omron devices connected CP1H by Ethernet, DeviceNet or Serial link can be configured, programmed and monitored through a single connection, using CX-One software suite CX-Programmer Jr. software, economical package for simple ladder diagram programming Built-in USB and peripheral ports and two plug-in serial comm boards for RS-232C and RS-422/485 simplify direct connection to serial devices and programming tools

Network communication capabilities via serial Modbus-RTU Master, Profibus-DP and Omron's CompoBus/S, PLC Link and DeviceNet I/O Link help integrate process or machine activity with other plant floor operations 40 I/O point CPU, Expandable to 320 I/O points using CPM1A expansion I/O units and CJ1 Special I/O modules UL, cUL and CE;UL Class I, Division 2, Groups B, C and D for use in hazardous locations; contact Omron for rating details

No. of I/O points 40 Appearance/ dimensions (H mm) Input voltage Built-in capabilities No. of inputs 24 DC No. of outputs Output type Model

4 encoder inputs (100 kHz) 8 Interrupts/Counters 4 encoder inputs (100 kHz) 4 Pulse outputs: x 100 kHz 8 interrupts/counters 4 Analog inputs, 2 Analog outputs (1/12,000 resolution); 4 encoder inputs (100 kHz) 8 Interrupts/Counters 4 Analog inputs, 2 Analog outputs (1/12,000 resolution) 4 encoder inputs (100 kHz) 4 Pulse outputs: x 100 kHz 8 interrupts/counters 4 encoder inputs: x 1 MHz, x 100 kHz 4 Pulse outputs x 1 MHz, x 50 kHz 4 Line driver inputs: 2 input side; 2 output side 6 interrupts/counters

Relay NPN transistor (sinking) PNP transistor (sourcing) Relay

Item RS-232C option board Appearance Description Converts CPU unit option port for RS-232C devices; use to 2 per CPU Model CP1W-CIF01

Item I/O Connecting Cable Appearance Description Use the cable to connect CPM1A Expansion I/O Units when using a CJ Unit Adapter Cable length 80 cm Model CP1W-CN811

Name Expansion I/O units Relay Transistor (sinking) Transistor output (sourcing) Relay Transistor (sinking) Transistor output (sourcing) Relay Transistor (sinking) Transistor output (sourcing) Analog input unit Analog output unit Analog I/O units Analog (resolution: 1/6000) Analog (resolution: 1/6000) Analog (resolution: 1/256) Analog (resolution: 1/6000) DeviceNet I/O link unit CompoBus/S I/O link unit Temperature sensor units 2 thermocouple inputs 4 thermocouple inputs 2 platinum resistance thermometer inputs 4 platinum resistance thermometer inputs I/O link input bits 8 I/O link input bits I/O link output bits 8 I/O link output bits Output method 24 Inputs 16 Outputs Model CPM1A-TS101 CPM1A-TS102

CP1H Programmable Controllers CJ-series Special I/O Units and CPU Bus Units

Category CJ-series special I/O units Name Analog input units Specification 8 inputs to 20 mA) Resolution: 1/8,000; Conversion speed: 250 µs/input max. (Can be set to 1/4,000 resolution and 1 ms/input.) 4 inputs to 20 mA) Resolution: 1/8,000; Conversion speed: 250 µs/input max. (Can be set to 1/4,000 resolution and 1 ms/input.) Analog output units 8 outputs 10 V) Resolution: 1/4,000; Conversion speed: 1 ms/output max. (Can be set 1/8,000, 250 µs/output.) 8 outputs to 20 mA) Resolution: 1/4,000; Conversion speed: 1 ms/output max. (Can be set 1/8,000, 250 µs/output.) 4 outputs to 20 mA) Resolution: 1/4,000; Conversion speed: 1 ms/point max. 2 outputs to 20 mA) Resolution: 1/4,000; Conversion speed: 1 ms/output max. Analog I/O unit 4 inputs, 2 outputs to 20 mA) Resolution: 1/4,000; Conversion speed: 1 ms/point max. (Can be set 1/8,000, 250 µs/point) 4 inputs, S, T; Conversion speed: 250 ms/4 inputs 4 inputs, Pt100 (JIS, IEC), JPt100 , Conversion speed: 250 ms/4 inputs 2 inputs, PL ±100 mV, Resolution: 1/64,000; Conversion speed: 10 ms/2 inputs 2 inputs, Pt50, Ni508.4; Resolution: 1/64,000; Conversion speed: 10 ms/2 inputs 2 inputs, V, ±10-V selectable range, to 20 mA, 20 mA Temperature control units 4 loops, thermocouple input, NPN output 4 loops, thermocouple input, PNP output 2 loops, thermocouple input, NPN output, heater burnout detection function 2 loops, thermocouple input, PNP output, heater burnout detection function 4 loops, platinum resistance thermometer input, NPN output 4 loops, platinum resistance thermometer input, PNP output 22 loops, platinum resistance thermometer input, PNP output, heater burnout detection function 2 loops, platinum resistance thermometer input, PNP output, heater burnout detection function CompoBus/S master unit CompoBus/S remote I/O, 256 points max. CJ-series CPU bus units Controller link units Serial communications units Ethernet unit DeviceNet unit Profibus-DP master unit Wired (Shielded twisted-pair cable) 1 RS-232C port and 1 RS-422A/485 port 2 RS-232C ports 100Base-TX Model CJ1W-AD081-V1

Functions as master and/or slave; allows control of 32,000 points max. per master. CJ1W-DRM21 Provides data exchange, diagnostics and message communications at 12 Mbps; 1200 m distance; 125 modes; shielded twisted pair cable; allows 7,168 words of I/O data per PLL. Max. 180 words of input and output CJ1W-PRT21

Item RS-232C cables Appearance/dimensions (H mm) Description RS-232C; PC connector for program download to RS-232C; for serial communications from PLC to PC USB-serial conversion cable Cable length 2m Model CBL-202 in Canada CBL-804 in Canada CS1W-CIF31

0.5 m Converts between USB and RS-232C; PC Driver included (CD-ROM); Applicable OS: Windows® 98, Me, or XP
