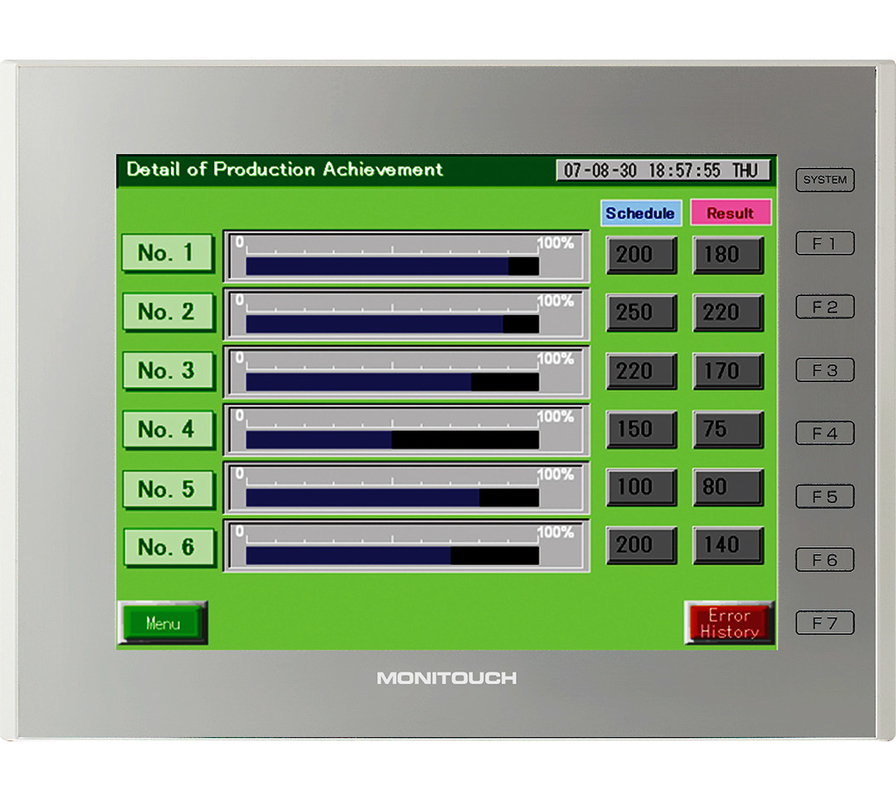

V9100iCD Hakko Electronics ( By Fuji Electric ) | Monitouch V9 Series

Manufacturer : Hakko Electronics ( by Fuji Electric )

Product No : V9080iCD

Product type : Monitouch V9 Series

Power supply : -

Rated voltage : DC24V

Permissible range of voltage : ±10%

Permissible momentary power failure : within 1ms

Demand (maximum rating) : 17W or less

Insulation resistance :-

DC500V 10MO or more

Physical environment : -

Ambient temperature : 0~50?*1

Ambient humidity : 85%RH or less (without dew condensation)*1

Operation altitude : 2,000 meters or lower

Atmosphere : Not to be exposed to corrosive gas, or conductive dust

Storage temperature : -10~60?*1

Storage temperature : 85%RH or less (without dew condensation)*1

Overvoltage category : Category II

Contamination level : Level 2

Mechanical operating conditions : -

Resistance to oscillation : Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5~9Hz, pulsating with:3.5mm, 9~150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each)

Resistance to shock : Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z: 3 directions, three times each (18 times in total)

Electric operating conditions :-

Resistance to noise : Noise voltage: 1,500Vp-p, pulse width: 1µs, pulse rise time: 1ns

Resistance to static discharge : Complies with IEC61000-4-2, contact: 6kV, air: 8kV

Installation conditions :-

Grounding : Grounding resistance: Less than 100O, FG/SG separation

Structure : Front panel:Complies with IP66, Type 4X/13 (when waterproof gasket is installed)*2

Rear cover:Complies with IP20

Form: Single unit, Installation method: Panel mounting

Cooling system : Natural air cooling

Dimensions W*H*D(mm) : 235.0×180.0×48.9

Dimensions W*H*D(mm) : 220.5×165.5(+0.5/-0)

Case color : Light gray

Material : PC

Screen memory (FROM) : 64MB

Backup memory (SRAM) : 800KB

Display :

Display device : TFT color LCD

Resolution : 640×480

Display size : 8.4?

Colors : 16.7 million*3

Backlight : LED

Backlight life : 70,000 hours

Touch switch :

Type : Analog resistance film

Function switch :

Quantity : 8

External interface :-

D-Sub 9-pin (CN1) : RS-232C/ RS-422/485, Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200,187500*4bps

Modular 8-pin (MJ1/ MJ2) : RS-232C/ RS-422/485 (two-wire system), Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps

SD card : One card slot provided as standard

Ethernet : 1ch, Baud rate: 100Mbps, 10Mbps

Shipping Weight: 7 Kg
