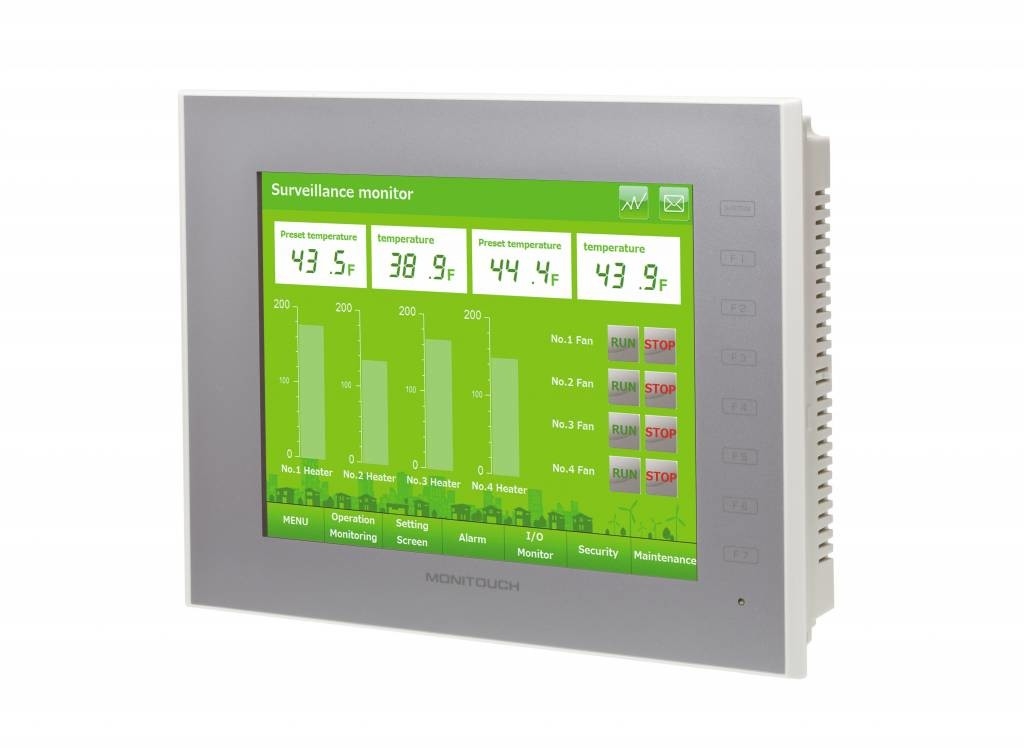

Hakko Electronics ( by Fuji Electric ) Monitouch V9060iTD

V9060iTD

Lite Model

5.7 inches

TFT VGA

16.7M Colors

Power supply :-

Rated voltage : DC24V

Permissible range of voltage : ±10

Permissible momentary power failure : within 1ms

Demand (maximum rating) : 17W or less

Insulation resistance : DC500V 10M or more

Physical environment :-

Ambient temperature : 0 50 *1

Ambient humidity : 85%RH or less (without dew condensation)*1

Operation altitude : 2,000 meters or lower

Atmosphere : Not to be exposed to corrosive gas, or conductive dust

Storage temperature : 10 60 *1

Storage temperature : 85%RH or less (without dew condensation)*1

Overvoltage category : Category II

Contamination level : Level 2

Mechanical operating conditions :-

Resistance to oscillation : Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5 9Hz, pulsating with:3.5mm,
9 150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each)

Resistance to shock : Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z:
3 directions, three times each (18 times in total)

Electric operating conditions :-

Resistance to noise : Noise voltage: 1,000Vp-p, pulse width: 1 s, pulse rise time: 1ns

Resistance to static discharge : Complies with IEC61000-4-2, contact: 6kV, air: 8kV

Installation conditions :-

Grounding : Grounding resistance: Less than 100 , FG/SG separation

Structure : Front panel:Complies with IP66, Type 4X/13 (when waterproof gasket is installed)
Rear cover:Complies with IP20
Form: Single unit, Installation method: Panel mounting

Cooling system : Natural air cooling

Dimensions W*H*D(mm) : 182.5×138.8×53.0

Dimensions W*H*D(mm) : 174.0×131.0 +0.5/-0

Case color : Light gray

Material : PC

Screen memory (FROM): - 64MB

Backup memory (SRAM): - 800KB

Display: - Display device : TFT color LCD

Resolution : 640×480

Display size : 5.7

Colors : 260,000 *2

Backlight : LED

Backlight life : 50,000 hours

Touch switch: - Type: Analog resistance film

Function switch: - Quantity: 6

External interface: - D-Sub 9-pin (CN1)*3 : RS-232C/ RS-422/485, Asynchronous type,
Data length: 7,8 bits, Parity: even, odd, none,
Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200,187500*4bps

Modular 8-pin
(MJ1/ MJ2) : RS-232C/ RS-422/485 (two-wire system), Asynchronous type,
Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600,
19200, 38400, 57600, 76800, 115200 bps

SD card : One card slot provided as standard

Ethernet : 1ch,
Baud rate: 100Mbps, 10Mbps

Wireless LAN : -

USB : Type A Type mini-B(Ver.2.0)

Sound output : -

Clock: - Backup period : 5 years (Ambient temperature 25°C)

Calendar accuracy : Gap ±90 sec. per month (Ambient temperature 25°C, when power is not supplied)

Standard: - CE marking : EN61000-6-2,EN61000-6-4

UL cUL : UL508,ANSI/ISA 12.12.01

KC : Compliant

Radio Act : -

Screen memory (FROM): - 64MB

Backup memory (SRAM): - 800KB

Display: - Display device : TFT color LCD

Resolution : 640×480

Display size : 5.7

Colors : 260,000 *2

Backlight : LED

Backlight life : 50,000 hours

Touch switch: - Type: Analog resistance film

Function switch: - Quantity: 6

External interface: - D-Sub 9-pin (CN1)*3 : RS-232C/ RS-422/485, Asynchronous type

Data length: 7,8 bits, Parity: even, odd, none,

Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200,187500*4bps

Modular 8-pin

(MJ1/ MJ2) : RS-232C/ RS-422/485 (two-wire system), Asynchronous type,

Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps

SD card : One card slot provided as standard

Ethernet : 1ch

Baud rate: 100Mbps, 10Mbps

Wireless LAN : -

USB : Type A Type mini-B(Ver.2.0)

Sound output : -

Clock: - Backup period : 5 years (Ambient temperature 25°C)

Calendar accuracy : Gap ±90 sec. per month (Ambient temperature 25°C, when power is not supplied)

Standard: - CE marking : EN61000-6-2,EN61000-6-4

UL cUL : UL508,ANSI/ISA 12.12.01

KC : Compliant

Radio Act : -

Shipping Weight: 3 Kg
