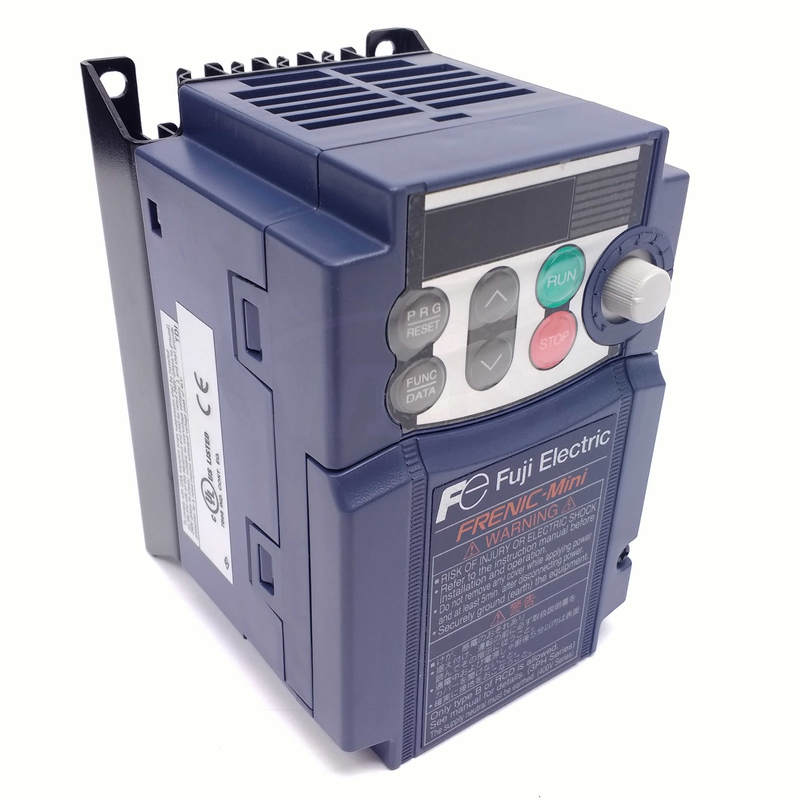

FRN0004C2S-4C 1 HP Fuji FRENIC Mini C2 Compact Variable Frequency Drive 460V
  • FRN0004C2S-4C 1 HP Fuji FRENIC Mini C2 Compact Variable Frequency Drive 460V

FRN0004C2S-4C 1 HP Fuji FRENIC Mini C2 Compact Variable Frequency Drive 460V

Place of Origin China
Brand Name FUJI
Model Number FRN0004C2S-4C
Product Details
Part Number::
FRN0004C2S-4C
Manufacturer::
Fuji Electric
Shipping Weight:
10 Kg
High Light:

Variable Frequency Drive 460V

,

1HP Fuji FRENIC Drive

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$158-$258usd/pc
Packaging Details
Carton packaging
Delivery Time
1-2 working days
Payment Terms
T/T, western union
Supply Ability
200pc/per week
Product Description

FRN0004C2S-4C 1 HP Fuji FRENIC-Mini C2 Compact Variable Frequency Drive, 460V

ENVIRONMENTAL

Enclosure UL Open Type (IP20)
Optional UL Type 1
Ambient Temperature +14 to +122°F (-10 to +50°C) - UL Open Type
+14 to +104°F (-10 to +40°C) - UL Type 1
Storage Temperature -13 to +158°F (-25 to +70°C)
Humidity 5% to 95% With No Condensation
Altitude 0 to 3,300 ft. (1,000 m) Without Derating
Derate Output Current for Higher Altitudes per User's Manual

CODES AND STANDARDS




Input Voltage: Range-Phase 380-480VAC - 3 Phase
Input Voltage: Tolerance, Unbalance 3 - Phase Input = +10% to -15%, <2%
Input Frequency: Nominal, Tolerance 50/60Hz, +/-5%
Displacement Power Factor >0.98 (@ Rated Load)
Output Voltage: Range-Phase 0 to Maximum Input Voltage -3 Phase
Maximum Output Frequency 400Hz
Rated Output Current 3.1
Nominal Applied Motor HP (KW) 1 (.75)
Motor Control Method Induction Motor: V/f Control
Dynamic Torque Vector Control
Slip Compensation
Auto-Torque Boost
Automatic Energy Savings
Synchronous Motor (PMAC): Sensorless Magnetic Positioning [speed control range: 10% of base frequency and up
Overload Capacity 150% Rated Current for 1 minute.
200% Rated Current for 0.5 second
Analog Inputs Qty 1: 0 to +10VDC
Qty 1: 0/4-20mA
Digital Inputs Qty 5: Programmable
Analog Outputs Qty 1: 0 to +10VDC, User Selectable Proportional Analog Signal Functionality
Digital Outputs Qty 1: Form C (1N.O. & 1N.C.) Dry Contacts Rated 0.3A @ 230V Max, User Selectable Functionality
Qty 1: Transistor Output Rated 50mA @ 27Vdc Max, User Selectable Functionality
Power Supply Qty 1: 24VDC, 50mA Max

ELECTRICAL


FRN0004C2S-4C 1 HP Fuji FRENIC Mini C2 Compact Variable Frequency Drive 460V 0
